KOHO – Oil level gauge
KOHO Oil level gauge

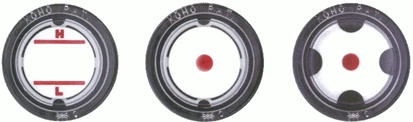

Model : V
![KOHO V series-1](https://www.nakayoshi-e.co.jp/en/wp-content/uploads/sites/2/2018/09/KOHO-V-series-1.gif)
![KOHO V series-2](https://www.nakayoshi-e.co.jp/en/wp-content/uploads/sites/2/2018/09/KOHO-V-series-2.gif)
- The main body is transparent, super-hard, special plastic. It doesn’t damage to any impact.
- Please choose the red circle sign type when using it for the machine of the high speed that oil bubbles intensely.
- Please choose four hole red circle sign type for oil with high viscosity.
- Please use the type without the reflector when you see in the tank.
- The reflector is white, and the character and the line where “H” “L” is red are clear and the amount of oil is displayed plainly also in a little dark place.
- There is no worry dirty with oil because the reflector has oil-repellent properties.
- It is possible to clean it by easily detaching it even if garbage enters from the gateway of oil.
- Heatproof is about 100℃.
![KOHO how to order V series](https://www.nakayoshi-e.co.jp/en/wp-content/uploads/sites/2/2018/09/KOHO-how-to-order-V-series-1.gif)
![KOHO reflector type V series](https://www.nakayoshi-e.co.jp/en/wp-content/uploads/sites/2/2018/09/KOHO-reflector-type-V-series.gif)
![KOHO dimension V series](https://www.nakayoshi-e.co.jp/en/wp-content/uploads/sites/2/2018/09/KOHO-dimension-V-series.gif)
Model : W
![KOHO W series](https://www.nakayoshi-e.co.jp/en/wp-content/uploads/sites/2/2018/09/KOHO-W-series.gif)
- The main body is transparent, super-hard, special plastic. It doesn’t damage to any impact.
- Please use the type without the reflector when you see in the tank.
- The reflector is white, and the red circle sign and the red line are clear and the amount of oil is displayed plainly also in a little dark place.
- There is no worry dirty with oil because the reflector has oil-repellent properties.
- It is possible to clean it by easily detaching it even if garbage enters from the gateway of oil.
- Heatproof is about 100℃.
How to order W series
Example of order
W-30 – N —> model W-30, none reflector type
W-40 —> model W-40, red circle sign type
V-25 – 2 —> model W-25, Double line type
![KOHO how to order W series](https://www.nakayoshi-e.co.jp/en/wp-content/uploads/sites/2/2018/09/KOHO-how-to-order-W-series.gif)
![KOHO dimension W series](https://www.nakayoshi-e.co.jp/en/wp-content/uploads/sites/2/2018/09/KOHO-dimension-W-series.gif)
Model : SP
![KOHO SP series](https://www.nakayoshi-e.co.jp/en/wp-content/uploads/sites/2/2018/09/KOHO-SP-series.gif)
- The main body is transparent, super-hard, special plastic. It doesn’t damage to any impact.
- The reflector is white, and the character and the line where “H” “L” is red are clear and the amount of oil is displayed plainly also in a little dark place.
- There is no worry dirty with oil because the reflector has oil-repellent properties.
- The installation and detaching are very easy. Therefore, when the reflector becomes dirty, it is possible to clean it by always easily detaching the main body.
- Heatproof is about 100℃.
How to order SP series
Example of order
SP-1
SP-4
![KOHO how to order SP series](https://www.nakayoshi-e.co.jp/en/wp-content/uploads/sites/2/2018/09/KOHO-how-to-order-SP-series.gif)
Model : AP
![KOHO AP series](https://www.nakayoshi-e.co.jp/en/wp-content/uploads/sites/2/2018/09/KOHO-AP-series.gif)
-
-
- Heatproof is about 80℃
How to order AP series
Example of order
AP-01,sizeB=50 NO float
AP-4.sizeB=500 withfloat
![KOHO how to order AP series](https://www.nakayoshi-e.co.jp/en/wp-content/uploads/sites/2/2018/09/KOHO-how-to-order-AP-series.gif)
